1-5T/H Small Scale Palm Oil Processing Production Line

Palm oil is a kind of tropical woody vegetable oil, which is the largest variety of vegetable oil produced, consumed and internationally traded in the world at present. With soybean oil and rapeseed oil, it is also known as “the three major vegetable oils in the world”. It has a edible history of more than 5,000 years.

The fresh palm fruit string is 100% of the total palm fruit string, the proportion of empty fruit string is 23%, the palm fruit is 65%), and the palm oil content of the whole palm fruit string is (26%), and the palm kernel oil content is 3.25%.

The 1-5T/H Small Scale Palm Oil Production Line is a complete and practical solution designed for small and medium-sized palm oil processors. Built to process fresh palm fruits into high-quality crude palm oil, this production line includes a palm fruit thresher, a 1-5T/H palm oil press machine, and a oil filter machine. It is an ideal setup for plantations and rural areas aiming for self-sufficient palm oil production with low labor and energy costs.

1-5T/H Small Scale Palm Oil Processing Production Line Process

FFB(Palm fruit bunches)–Sterilizing–Thershing–Digesting–Pressing–Clarifying–Filtering–Drying–Crude palm oil

1. Receipt of fruit : Automatic metering and unloading of materials, increase the production efficiency. The fruit cage pushes and pulls along the fixed track and operates mechanized, saving time and effort.

2.Sterilization : Sterilization can be divided into two types, one is a horizontal sterilizer sterilizing tank and the other is a vertical sterilizer sterilizing tank. In comparison, because the horizontal sterilization takes up a large area and the steam consumption is large, it is a relatively traditional sterilization method. The vertical sterilization is based on the improvement of horizontal sterilization. It consumes less, saves resources, and is used more and more widely.

3. Fruit removal: The purpose of threshing is to separate the oil palm fruit from the fruit string by strong rotational vibration. The fruit removal equipment is a drum type fruit remover. The separated oil palm fruit is discharged into the press section. The empty fruit string is discharged from the other end of the drum to the yard or transported to or from the factory area for recycling of palm orchard cover, or on-site incineration as a fertilizer applied to the farmland. The adjustment mechanism of the fruit remover can adjust the delivery speed of the ear.

4. Crushing: The palm fruit masher is suitable for the smashing of cooked palm granules, so that the heating and humidifying mashing effect before the squeezing is better, the squeezing oil yield is effectively increased, and the squeezing process is reduced in the subsequent squeezing section.

5. Squeeze: With advanced continuous double spiral brown fruit oil press, hydraulic automatic control system that can adjust the pressing pressure, high oil extraction efficiency, low residue of cake residue and low breakage rate of palm kernel.

6. Clarification: Separation of major impurities (such as silt, fiber, etc.) in the oil by means of natural sedimentation

7. Vacuum dehydration equipment: As the fresh palm fruit contains moisture, and it also enters a lot of moisture during the cooking and fermenting stage, so when the palm oil squeezed out , it contains a lot of water. If it is not dehydrated promptly, the palm oil will quickly deteriorate and spoil. and the palm oil dehydration equipment uses vacuum heating to quickly dehydrate palm oil.

8. Fine filtration: The use of bag-type fine filter can accurately ensure the filtration accuracy, and can quickly and easily replace the filter bag, and the filter almost has no material consumption, which reduces the operating cost and suitable for fine filtration of palm oil.

1-5T/H Small Scale Palm Oil Processing Production Line Features

Complete 3-in-1 Line: Threshing, pressing, and filtering integrated in one system
Fresh Palm Fruit Processing: Designed for optimal output with fresh palm fruit bunches
Continuous Operation: Supports long working hours with consistent performance
Modular Design: Easy to install, operate, and transport
Durable Build: Made with wear-resistant materials for long-term use

1-5T/H Small Scale Palm Oil Processing Production Line Advantages

Perfect for Small and Medium Palm Farms: Cost-effective solution for plantation owners
Energy Efficient & Low Labor Demand: Minimal manpower required for full operation
Improved Oil Yield & Quality: Higher extraction rate with clean oil output
Supports Rural Entrepreneurship: Suitable for remote areas with minimal infrastructure
Fast Return on Investment: Ideal setup for profitable small-scale operations

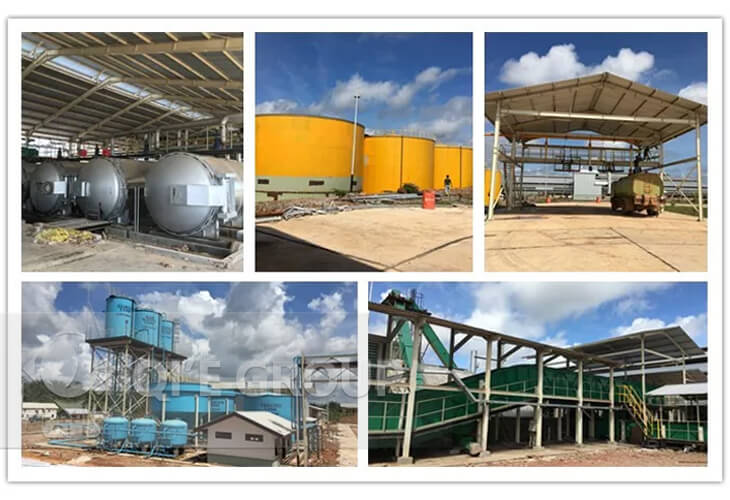

Our palm oil production line is exported to more than 100 countries in the world and has been well received. And this small scale palm oil mill is your most cost-effective choice in the field of palm oil production, please contact us! We will provide equipment suitable for you and provide product installation and commissioning according to your needs. Welcome to our factory!
