Small Scale Palm Oil Refining Machine

Refined palm oil, primarily known as Refined, Bleached, and Deodorized (RBD) palm oil, is a versatile, light-colored, odorless, and flavorless vegetable oil widely used across the food, cosmetic, and biofuel industries. The refining process removes impurities, pigments, and odors from the raw crude palm oil to produce a stable and consistent product.

Small-scale palm oil refining machines, typically with capacities of 1 to 10 tons per day, are available in a “batch” configuration suitable for mini or small scale palm oil processing plant. They are designed to produce high-quality edible refined palm oil (RBD oil).

Palm Oil Refining Processes

The small-scale refining process generally involves four core steps to remove impurities, odors, and colors from crude palm oil:
Degumming: Phosphoric acid or hot water is added to the crude oil to coagulate and remove gummy substances like phospholipids.
Deacidification (Neutralization): An alkaline solution (e.g., sodium hydroxide) is added to neutralize free fatty acids (FFAs), which are then separated as soapstock.
Decolorization (Bleaching): The oil is treated with activated clay or carbon under vacuum to adsorb pigments and other impurities, which are then removed via filtration.
Deodorization: High-temperature steam is injected into the oil under high vacuum to strip away unpleasant odors and volatile compounds, resulting in a bland, stable oil.

Main equipment in small scale palm oil refining machine:

Refining pot: to remove gum and impurities from crude oil, and using alkali to neutralize acid inside crude oil
Decolorization pot: To move the pigment in the oil.
Deodorization pot: To move the bad smells in the cooking oil.
Conductive oil stove: It is used to provide the heat for the whole batch type cooking oil refinery plant process.
Vacuum pump: The function of batch type cooking oil refinery plant is to provide vacuum for decolorization and deodorization.
Air compressor: It will dry the white clay after absorb the pigment in the oil.
Steam generator: To generate the steam for the deodorization pot.

Small Scale Palm Oil Refining Machine Features

Capacity: Typically designed for 1-10 tons per day of crude oil processing.
Operation: Generally easy to operate, with simple design and energy-saving features, reducing labor costs.
Material: Built with high-quality materials, primarily stainless steel, especially in the deodorization section, to meet food processing standards.
Versatility: Can be used to refine a variety of other edible oils, including soybean, peanut, coconut, and sunflower oil.
Configuration: Usually “batch type” processing, where each step is completed in separate batches.

Application

Our small scale palm oil refining machine is widely used in cooking oil refining process, such as peanut oil refining process, soybean oil refining process, cottonseed oil refining process, rice bran oil refining process, palm oil refining process , palm kernel oil refining process, etc.

Requirements for extraction cake ,steam ,water. electricity etc:

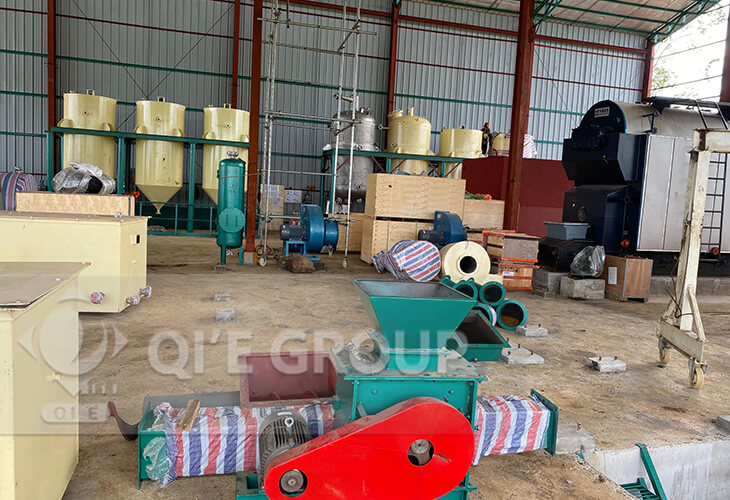

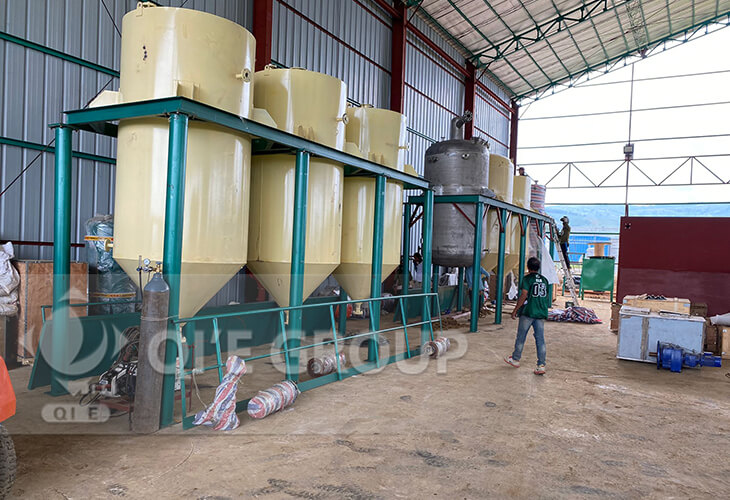

Palm Fruit Press&Refining in Philippines

This project is located in Philippines. We are in charge of project design, equipment manufacturing and the guidance of installation and commission.

This batch palm oil refining line of an oil refinery is perfect as a mini or small-scale palm oil mill plant. It requires low investment capital and a smaller occupation of land. You are able to refine almost every type of crude edible oil. The primary refinery process includes three stages which are de-gumming, neutralizing, bleaching, and deodorizing. This process eliminates all the impurities which make the oil inedible. The refining process also includes making the oil palatable and rancid-resistant if and when it is stored for long periods of time. Batch oil refining holds a capacity of 1TPT to 10TPD.

1-5TPD Cooking Oil Refinery Plant/Equipment/Line Video
