1-10TPD Palm Oil Refinery Machine

The 1-10tpd palm oil refining machine can refine almost all types of oils. The refined oil quality depends on the type of crude oil and refinery process and technology. With years experience in the field of oil and fats industry. We’ve got professional oil refining engineers and advanced refining technologies, we will design, install and debugging the complete set of edible palm oil refining machine according to customers’ refining needs to give the minimum operation costs and maximum output results. So far, we have already exported our 1-10tpd palm oil refining machine to over 30 countries across world and our products have occupied a great reputation internationally.

Palm oil refinery is an essential process for a complete palm oil mill plant because there are still some impurities such as phospholipids, FFA, pigment, odor,etc. in the crude palm oil. QIE Machinery is a professional palm oil refinery manufacturer who is devoted to processing pure edible oil for worldwide customers. We can provide professional technical support and first class palm oil refinery machine and other palm oil machine for customers.

Main Steps of 1-10TPD Palm Oil Refinery Machine：

1.Degumming.
In this step gums in crude oil are removed by hydration with the help of phosphoric acid. Degumming is the first step for the whole palm oil refinery process.
2. Neutralization.
In this step free fatty acids are neutralized by using sodium hydroxide and convert them into soap. Additional impurities are also removed by adsorption on soap.Neutralization is also called deacidification, it is the important part for palm oil refinery.
3. Bleaching.
During bleaching, unwanted pigments are adsorbed physically and oil will become much clearer. Bleaching is also decolorization in palm oil refinery.
4. Deodorization.
Deodorization is used to remove unacceptable odors by steam distillation, the odoriferous compound are stripped off with the help of live injected steam into heated oil under high vacuum pressure. Deodorization is mainly for making oil color lighter during palm oil refinery process. Which can make oil looks good.
5. Fractionation.
Palm oil wll be two status under a certain tempreature, solid and liquid. We call the solid palm stearin, and liquid is palm olein.
Fractionation is mainly for separating palm olein and palm stearin. In the supermarket, all the oil is palm olein. Palm stearin can be as deep-processing products.

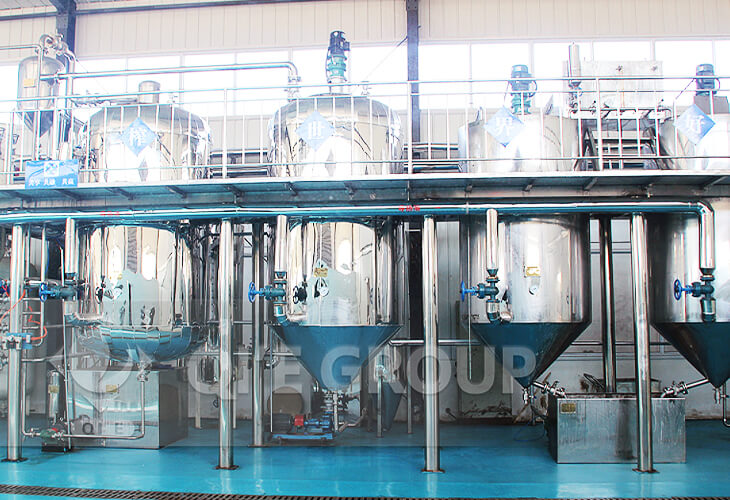

1-10TPD Palm Oil Refinery Machine main equipments:

Heat Conduction Furnace: 1 set Offer enough thermo for the refining sections.
Steam Generator: 1 set Produce steam for the workshop
Refining Pot: 2 sets Remove the gum, phosphoric acid etc,
Decolorizing Pot: 1 set Remove the color from neutralized oil
Deodorizing Pot: 1 set Remove the solvent, smell, water from decolorized oil
Other Auxiliary Equipments: Hot water Tank, Bleaching earth Tank, Air compressor, pumps, filters, Valves, Electricity Control Cabinet, etc.

Advantages of 1-10TPD Palm Oil Refinery Machine:

1,Wide application: Our 1-10TPD palm oil refinery machine is suitable for various crude vegetable oil, even animal oil, fish oil, etc.
2,Low investment: 1-10TPD  palm oil refinery machine needs less investment, and cost recovering time is also short.
3,Less land request: Sometimes land is one of the problems for you to start oil milling business, but for our batch palm oil refinery machine, you don’t need to consider this matter, even 50m2 workshop will be ok.
4,Easy operation: For small capacity batch palm oil refinery machine, it is very easy to operate. After our short time professional training, your workers can operate the machines well.

Technical parameters of 1-10TPD Palm Oil Refinery Machine:
