Crude palm oil contains a lot of water, as well as colloid, pulp and other impurities, which must be remove. Otherwise, it is easy to cause the fermentation hydrolysis of palm oil and increasing of free fatty acids. Crude palm oil obtained by pressing contains more impurities, which need to be separated by filtration equipment or centrifugal separation equipment. The common filtration equipment is vibrating screen, and the centrifugal equipment is decanter centrifuge.
Production Capacity: 1-60TPH
Processing Capacity:
0.5-80TPH
Processing Capacity:
1-100TPH
Processing Capacity:
1-30TPD
all machine can be customized according to customers' needs.

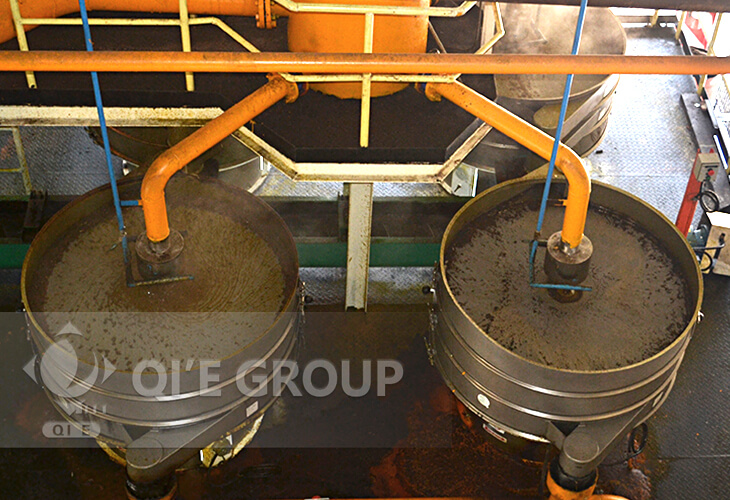

Compared with the belt filter of the same type, the energy consumption of the vibrating screen is less and the area occupied is not large.
Model: Circular, XS30 S888/Vibrodinamic;
Function: Screening of crude oil before clarification process;
Capacity: 15 tons/hr of diluted crude oil;
Size: 60inch;
Material: SUS304;
Power: 2.5HP;
No.of deck: Double deck;
Screen mesh: 40/20 mesh (market grade).

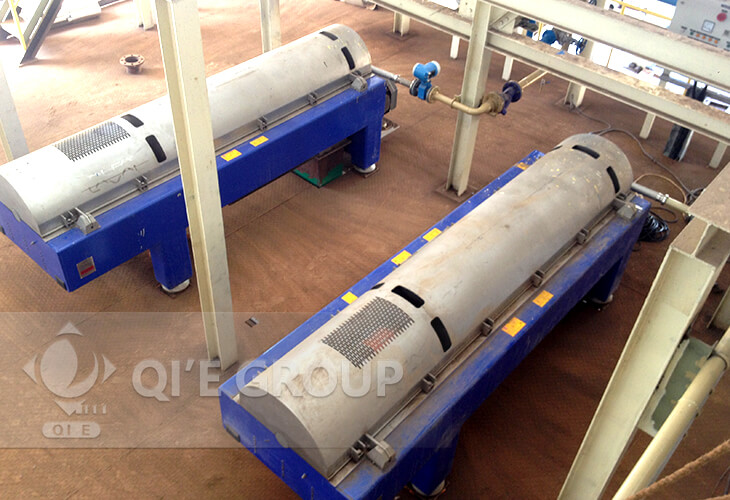

Our company's decanter centrifuge has reasonable structure, advanced technology and fine production, which can concentrate, dehydrate or fractionate solid particles with a particle size ranging from a few microns to three millimeters.
Model: PANX 750 D2 PRO;
Function: Centrifugal Separation and recovery of Oil from Sludge from the under flow of the sludge tank;
Capacity: 30 m³/hour;
Bowl material :Stainless steel.
QIE Group is a professional palm oil mill plant machine manufacturer. We can provide palm oil expeller machine, large scale palm oil mill plant, automatic palm oil mill plant, palm oil refinery machine and fractionation plant, turnkey palm oil processing plant solutions from plant layout design, machinery manufacturing, onsite debugging and installing.
Crude palm oil contains a lot of water, as well as colloid, pulp and other impurities, which must be remove. Otherwise, it is easy to cause the fermentation hydrolysis of palm oil and increasing of free fatty acids. Traditional palm oil purification equipment includes oil tank, drying oven and filter press. This kind of equipment combination is complicated, costly and needs large space occupation, making it unsuitable for small scale palm oil extraction production.
By the main process of sterilizing, digesting and oil pressing, we can get Crude Palm Oil (CPO) and Palm Expeller (PE).
During digesting process, the palm kernels are separated from the fruits (palm kernel recovery). We can get Crude Palm Kernel Oil (CPKO) and Palm Kernel Expeller (PKE) through process of crushing and oil pressing.
Palm oil has the highest oil yield than other oil crops and it is known as “The King of World Oil”. The main products are palm oil and palm kernel oil, which are widely used as edible oil and industrial oil.
1. Plate filtration machine Plate filtration machine is usually used to filter crude palm oil after pressing and clarification, to remove the fiber and some coarse particles. Plate filter adopts traditional oil filtering process, using the filter cloth to receive the impurities, so need to change the filter clothe manually.
Plate filtration machine is a little inconvenient when change filter clothe, but it is really suitable for small scale palm oil production factory, because it has low cost and high efficiency.
2. Membrane filtration machine Membrane filtration machine is similar with plate filtration machine in working principle and structure, but is different in inner structure of filter plate.
The filter chamber of the plate filtration machine is formed by staggered splicing of two kinds of filter plates, one solid filter plate and one frame filter plate. Membrane filtration machine adopts two different filter plates, one is solid filter plate and the other is hollow filter plate. The frame filter plate is surrounded by four strips, and the hollow filter plate is cast together in two layers, forming a large gap in the middle of the filter plate, which is the hollow filter plate.
3. Leaf filtration machine Leaf filtration machine is widely used in most of palm oil refinery plant and large scale palm oil production process. It is the best filtration method for solid-liquid separation.
Leaf filtration machine is mainly composed of oil tank, hoisting mechanism, stainless steel filtration meshes, vibration system, pressure display, slag discharging valve and other. It's advantage is compact size takes up small plant space; reasonable design requires less labors but still ensure high efficiency, easy to operate and maintain for long-term performance, provide ideal solution for oil filtration blocking and stumble oil discharging. So usually if customers want complete palm oil production plant, leaf filtration machine is the most economical and suitable for them.
4. Centrifugal filtration machine Centrifugal filtration machine is the most automatic equipment, which is usually used in continuous type palm oil refinery plant. Crude palm oil is rotated at high speed, then oil, water and impurities can be separated rapidly by different centrifugal forces. The separated impurities are attached to the impurity collecting cover. You only need to clean the cover regularly. Although centrifugal filtration machine is the most expensive, its running cost is lower and has best filtration effect.
All in all, if you want to choose a proper oil filtration machine, you need to consider these three questions. 1)What processing capacity is the machine you have? 2)How much money you want to invest for the palm oil production plant? 3)Do you want higher automatic or lower automatic machine? Then tell us your requirement, and our sales and engineer will give you suggestion.
Years of development have brought customers from all over the world. Contact us to start customizing a palm oil production line for your business.
Our palm oil production equipment has been exported to more than 120 countries and regions, and many customers have established long-term cooperative relationships with us. Below are some of the palm oil production equipment and palm oil production lines we manufacture. Whether you need a single palm oil production equipment or a complete palm oil production line, we can customize it for you.
Country : Peru
Production Output : 20TPD
Raw Materials : Palm Fruit, Palm Kernel.
Country : Philippines
Production Output : 40TPD
Raw Materials : Palm Fruit, Palm Kernel.
Country : Mexico
Production Output : 30TPD
Raw Materials : Palm Fruit, Palm Kernel.
Country : Cote d’Ivoire
Production Output : 160TPD
Raw Materials : Palm Fruit, Palm Kernel.
Country : Indonesia
Production Output : 120TPD
Raw Materials : Palm Fruit, Palm Kernel.
Country : Thailand
Production Output : 100TPD
Raw Materials : Palm Fruit, Palm Kernel.
Crude palm oil obtained from palm oil presser or palm oil pressing station contains many impurities, such as fibers, sands, water, which is not suitable for direct consumption or long-term storage. To get high quality and value palm oil, we usually need to use filtration machine to remove the unwanted impurities in crude palm oil. As an experienced palm oil processing machine manufacturer, supplier. Here we are glad to guide you several methods of filtering crude palm oil to get red palm oil.
1) Filter the palm oil by water boiling it;
2) Filter the palm oil by using QIE Machinery designed palm oil filtration system;
3) Filter the palm oil by using large scale palm oil mill filtration system;
Cooking oil filtration machine is a equipment which can separate oil, solid impurities and moisture. There are different types of cooking oil filtration machine in market, and you can choose suitable one based on your requirement.
In the whole palm oil production process, it needs plate filtration machine, Leaf filtration machine, centrifugal filtration machine, security filtration machine, etc.
With the development of palm oil processing technology, there are various kinds of oil purifier and oil filter press. Their functions and application fields are also different. Now, let's focus on how to select the most suitable crude palm oil purifier or filter press according to the characteristics of palm oil production process.
Main crude palm oil filter press machines are as follows:
Type 1: Plate type filter press machine
Type 2: Automatic leaf filter press machine
Type 3:Vacuum oil filter press machine
Type 4: Centrifugal Oil Filter press machine
